배경

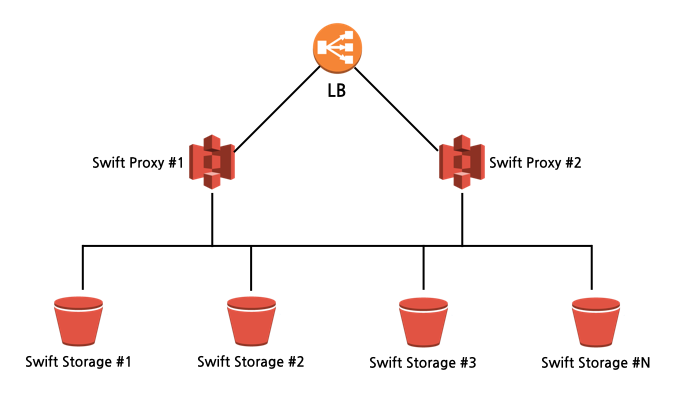

그림과 같이 L4 에 2대의 Swift proxy server 를 바인딩 한 환경에서 https 서비스를 제공하기 위해 L4 에서 SSL Offloading 설정을 했다.
이슈
L4의 SSL Offloading 성능이 떨어짐. 1Gbps 환경에서 download 시 20MB/s
속도 문제를 해결하기 위해서 swift proxy server 에서 SSL 처리를 시도해 보았다. SSL termination 을 위해서 nginx 와 stunnel 을 시험해 보았다.
시험방법
100 sessions 로 동시 다운로드 시도시 시스템 리소스 사용율 측정(Load avg.)
- 시험결과
- nginx: 5 (1 min)
- stunnel: 0.5 (1 min)
시스템 리소스를 적게 사용하는 stunnel 로 채택!!
stunnel
설치
# ./configure –prefix=/usr/local/stunnel –disable-libwrap –with-threads=pthread
# make
# make install
stunnel.conf
setuid = www-data
setgid = www-data
pid = /var/run/stunnel/stunnel.pid
;chroot = /var/run/stunnel
; error
debug = 3
output = /var/log/stunnel/stunnel.log
; Protocol version (all, SSLv2, SSLv3, TLSv1)
sslVersion = all
fips = no
[swiftproxy]
accept = 0.0.0.0:443
connect = 127.0.0.1:80
TIMEOUTidle = 600
cert = swift-proxy.crt
key = swift-proxy.nopass.key
process limits
swift 사용량이 늘다보니 아래와 같은 log 가 확인되었다.
2016.04.05 12:33:34 LOG3[13353638]: remote socket: Too many open files (24)
stunnel process 의 limits 확인
# cat /proc/$(cat /var/run/stunnel/stunnel.pid)/limits
Limit Soft Limit Hard Limit Units
Max cpu time unlimited unlimited seconds
Max file size unlimited unlimited bytes
Max data size unlimited unlimited bytes
Max stack size 8388608 unlimited bytes
Max core file size 0 unlimited bytes
Max resident set unlimited unlimited bytes
Max processes 192299 192299 processes
Max open files 1024 4096 files
Max locked memory 65536 65536 bytes
Max address space unlimited unlimited bytes
Max file locks unlimited unlimited locks
Max pending signals 192299 192299 signals
Max msgqueue size 819200 819200 bytes
Max nice priority 0 0
Max realtime priority 0 0
Max realtime timeout unlimited unlimited us
/etc/security/limits.conf 를 수정해도 프로세스를 기동할 때 적용이 되지 않는다. 적용하려면 init script or service file 을 수정해주면 된다.
init
/etc/init.d/stunnel
...
DEFAULTPIDFILE=/var/run/stunnel/stunnel.pid
DAEMON=/usr/local/stunnel/bin/stunnel
NAME=stunnel
DESC="SSL tunnels"
OPTIONS=""
ENABLED=0
RLIMITS="-n 32000"
...
systemd
systemd 에서는 service file 에서 process 의 resource limits 를 설정해줄 수 있다.
참고: https://www.freedesktop.org/software/systemd/man/systemd.exec.html
/etc/systemd/system/multi-user.target.wants/stunnel.service
[Unit]
Description=SSL tunnel for network daemons
After=syslog.target
[Service]
LimitNOFILE=32000
ExecStart=/usr/local/stunnel/bin/stunnel /usr/local/stunnel/etc/stunnel/stunnel.conf
Type=forking
[Install]
WantedBy=multi-user.target
적용후
# cat /proc/$(cat /var/run/stunnel/stunnel.pid)/limits
...
Max open files 32000 32000 files
에피소드
다른 동료가 /etc/security/limits.conf 를 수정후 stunnel restart 했으나 max open files 설정은 적용되지 않았다. 이유는 stunnel 의 thread mode 가 pthread 일 때만 limits 설정이 적용됨 확인했다. (역시 manual 과 doc 을 잘 읽어봐야 함)
